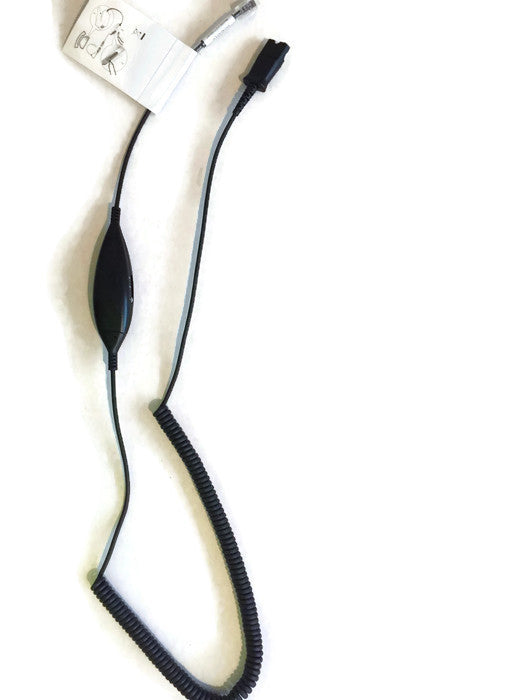

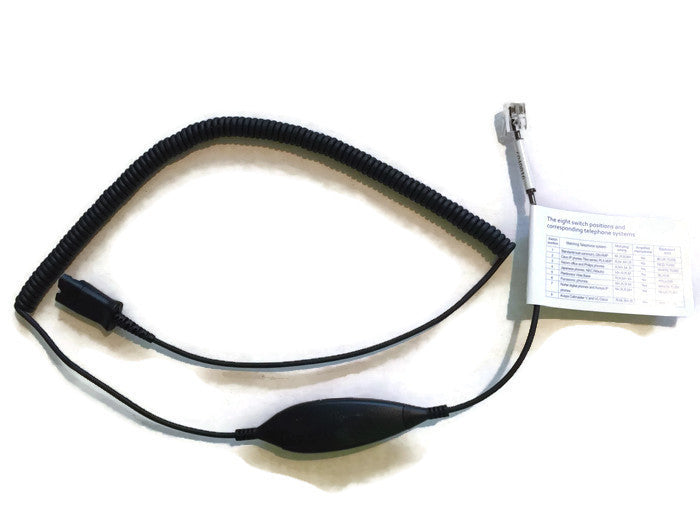

PLT QD Smart Cord Universal for Plantronics QD Compatible Headsets P14688
The Universal Smart Cord is the solution to a common problem of not being able to connect a headset to a telephone. Even though most connections have been standardized, the cording the headset to the phone is anything but standard as each telephone manufacturer has its own wiring configuration.
- Works with most desk phones including IP hard phones

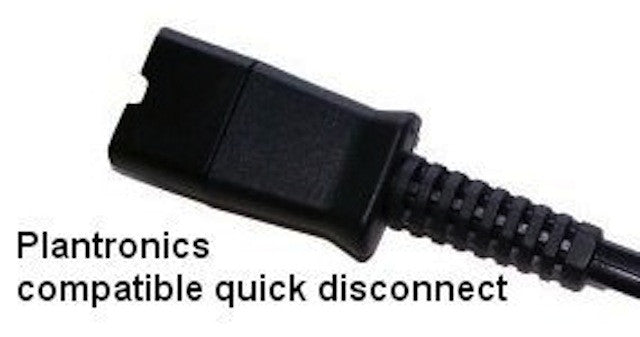

- Compatible with Plantronics H/HW Series or any Plantronics QD compatible headset
- Features 8 phone compatibility settings
- Built in low current microphone amplifier
- Perfect for phones requiring extra signal gain such as Cisco, Panasonic, Nortel and Avaya plus many IP phones

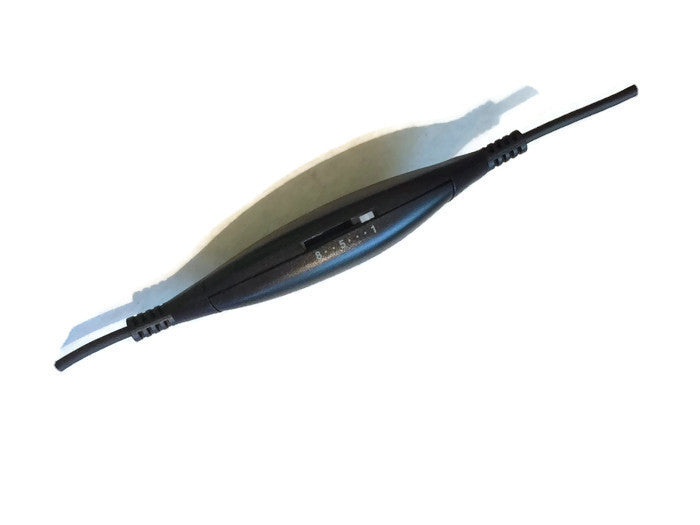

- Screw driver included for easy adjustment
- One cord that you can change setting on cord to work on multiple telephones
- 2 1/2 feet - up to 5 feet stretched

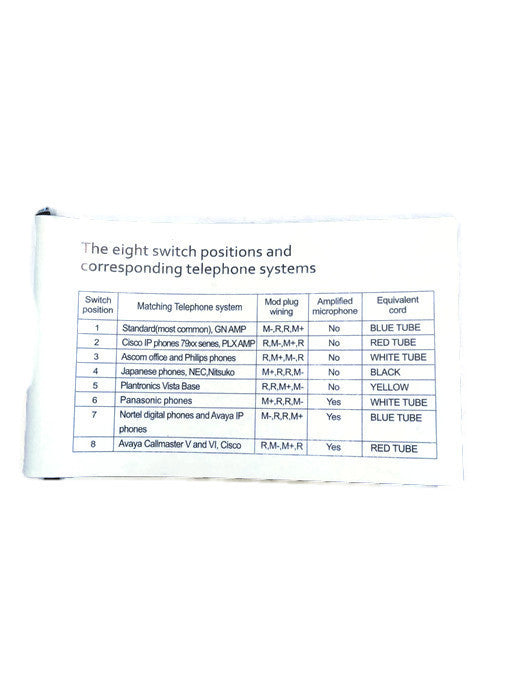

Wiring Configuration:
|
Switch Position |
|
Modular Plug |
Amplified Mic |
|
1 |
Standard (most common) |
M-, R, R, M+ |
No |
|
2 |
Cisco IP Phones 79xx series |
R, M-,M+,R |
No |
|
3 |
Ascom Office and Phillips Phones |
R,M+,M-,R |
No |
|
4 |
Japanese phones, NEC, Nitsuko |
M+,R,R,M- |
No |
|
5* |
Plantronics Vista Base |
R,R,M+,M- |
No |
|
6 |
Panasonic phones and Avaya IP Phones |
M+,R,R,M- |
Yes |
|
7 |
Nortel digital phones and other IP Phones |
M-,R,R,M+ |
Yes |
|
8 |
Avaya Callmaster V and VI, Cisco |
R,M-,M+,R |
Yes |
*The Universal Cord is ships on setting 5.
