JPL Vision+ 1080p Webcam

JPL Vision+ 1080p Webcam

JPL

  • $ 9888


JPL VISION+ 1080P WEBCAM

USB 1080p 30fps Plug & Play 2 Mic Array Video Conference Camera

Features
  • 1080p HD 30fps CMOS Camera
  • Plug & Play solution - compatible with a range of softphone solutions
  • Ideal Work at Home solution
  • Privacy Lens Cover
  • USB-A Connectivity
  • Two Microphones
  • Duplex Communication
  • 96° Wide angle field of view
  • Desk mount, monitor mount or tripod option
  • AEC – Automatic Echo Cancellation
  • ANS – Automatic Noise Suppression
JPL VISION+

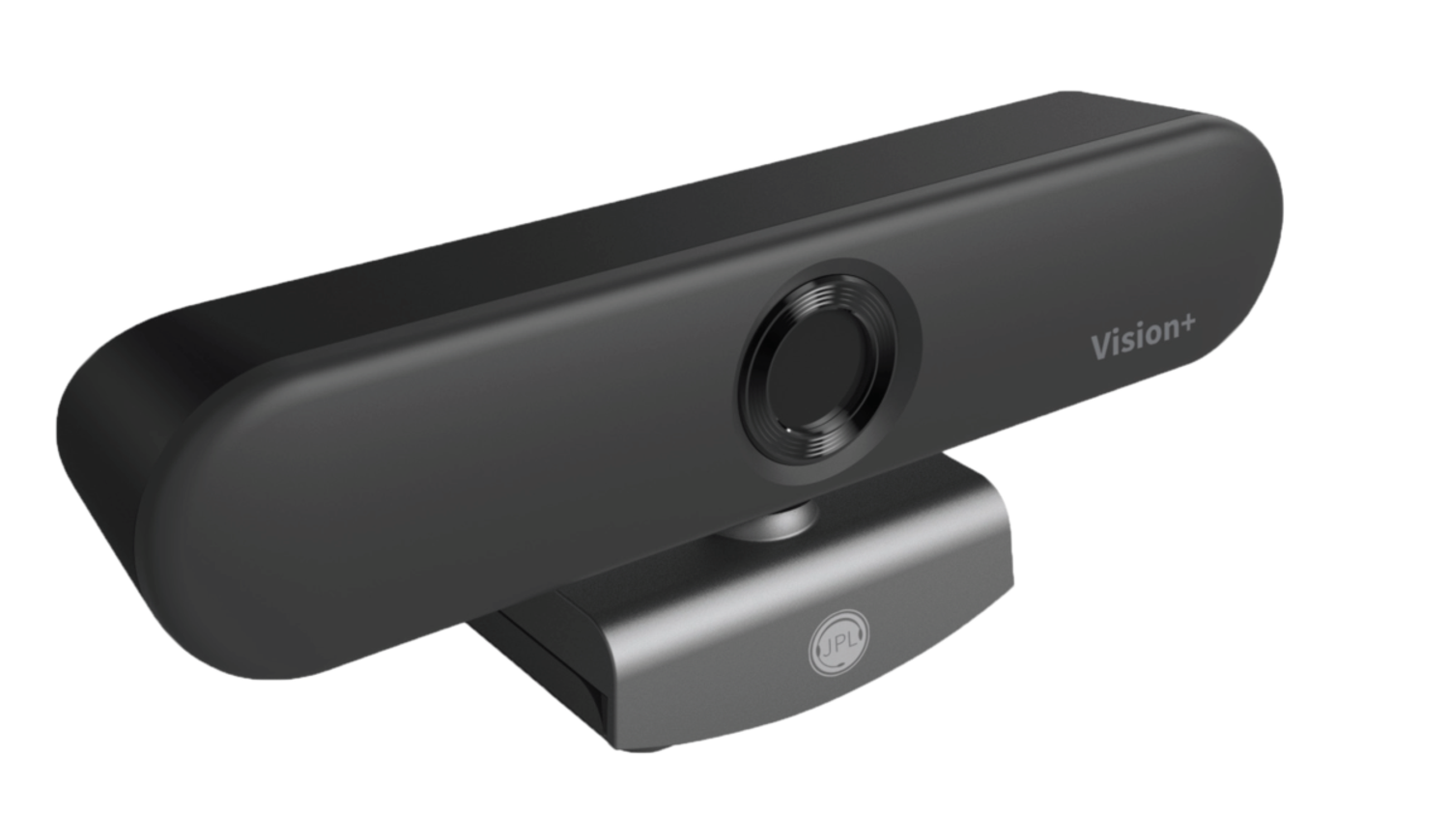

The JPL Vision+ is a compact USB webcam with two microphones that can be placed above your computer to allow long distance face to face meetings from your conference room or own home office.

SPECS:

Camera parameters:

  • Total Pixels 2 million pixels
  • Lens size 1/2.9 inch
  • Aperture 2.5±5%
  • Image area 5.85mm x 3.27mm
  • Maximum effective pixel 1920 (H) x 1080 (V) 2.1 million pixels
  • Output image format MJPG and YUY2
  • Field of view 96°(W)
  • AIC Automatic Exposure (AE) Auto White Balance (AWB) Dynamic Black Level Calibration (ABLC)
  • Resolution 1920 x 1080 @ 30fps 1280 x 720 @ 30fps 640 x 480 @ 30fps

Microphone parameters:

  • SNR ≥60dB
  • Sensitivity -42±3dB(0dB=1V/pa,1KHz)
  • Far-field distance 0~2 meters
  • Horizontal voice pickup Horizontal 180°
  • Communication mode Full Duplex
  • AIC Automatic gain control Automatic noise reduction control Automatic echo noise reduction control

Other parameters:

  • Interface type Type C
  • Voltage 5V/2A
  • OS Support Win 2000/XP/Vista/Win 7/Win 8/Win 10 Linux with UVC (above linux - 2.6.26) Mac - OS X 10.4.8 or later Win CE with UVC Android 4.0 or above with UVC



***PRODUCT DATASHEET
