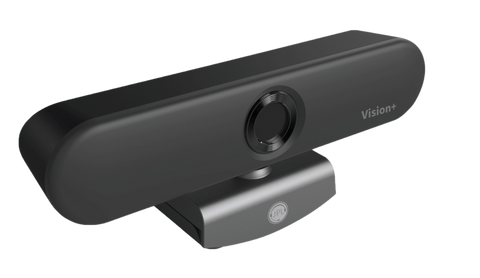

JPL VISION+ 1080P WEBCAM

USB 1080p 30fps Plug & Play 2 Mic Array Video Conference Camera

• 1080p HD 30fps CMOS Camera
• Plug & Play solution - compatible with a range of softphone solutions
• Ideal Work at Home solution
• Privacy Lens Cover
• USB-A Connectivity
• Two Microphones
• Duplex Communication
• 96° Wide angle field of view
• Desk mount, monitor mount or tripod option
• AEC – Automatic Echo Cancellation
• ANS – Automatic Noise Suppression

The JPL Vision+ is a compact USB webcam with two microphones that can be placed above your computer to allow long distance face to face meetings from your conference room or own home office.

SPECS:

Camera parameters:

• Total Pixels 2 million pixels
• Lens size 1/2.9 inch
• Aperture 2.5±5%
• Image area 5.85mm x 3.27mm
• Maximum effective pixel 1920 (H) x 1080 (V) 2.1 million pixels
• Output image format MJPG and YUY2
• Field of view 96°(W)
• AIC Automatic Exposure (AE) Auto White Balance (AWB) Dynamic Black Level Calibration (ABLC)
• Resolution 1920 x 1080 @ 30fps 1280 x 720 @ 30fps 640 x 480 @ 30fps

Microphone parameters:

• SNR ≥60dB
• Sensitivity -42±3dB(0dB=1V/pa,1KHz)
• Far-field distance 0~2 meters
• Horizontal voice pickup Horizontal 180°
• Communication mode Full Duplex
• AIC Automatic gain control Automatic noise reduction control Automatic echo noise reduction control

Other parameters:

• Interface type Type C
• Voltage 5V/2A
• OS Support Win 2000/XP/Vista/Win 7/Win 8/Win 10 Linux with UVC (above linux - 2.6.26) Mac - OS X 10.4.8 or later Win CE with UVC Android 4.0 or above with UVC

***PRODUCT DATASHEET
